Brand Name : SLD

Model Number : FDM778T-32

Certification : ISO, CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T, L/C

Supply Ability : 100 units per month

Delivery Time : 25 working days

Packaging Details : 40HQ containers

Rated load : 32000kgs

Max. lifting height : 2530mm

Operating weight : 34000kgs

Load center : 800mm

Overall dimension（L×W×H） : 10090×3120×3780mm

Engine : Weichai

Engine power : 199kw

Wheelbase : 4500±15 mm

Color : Yellow

New or Used : New

Contact Now

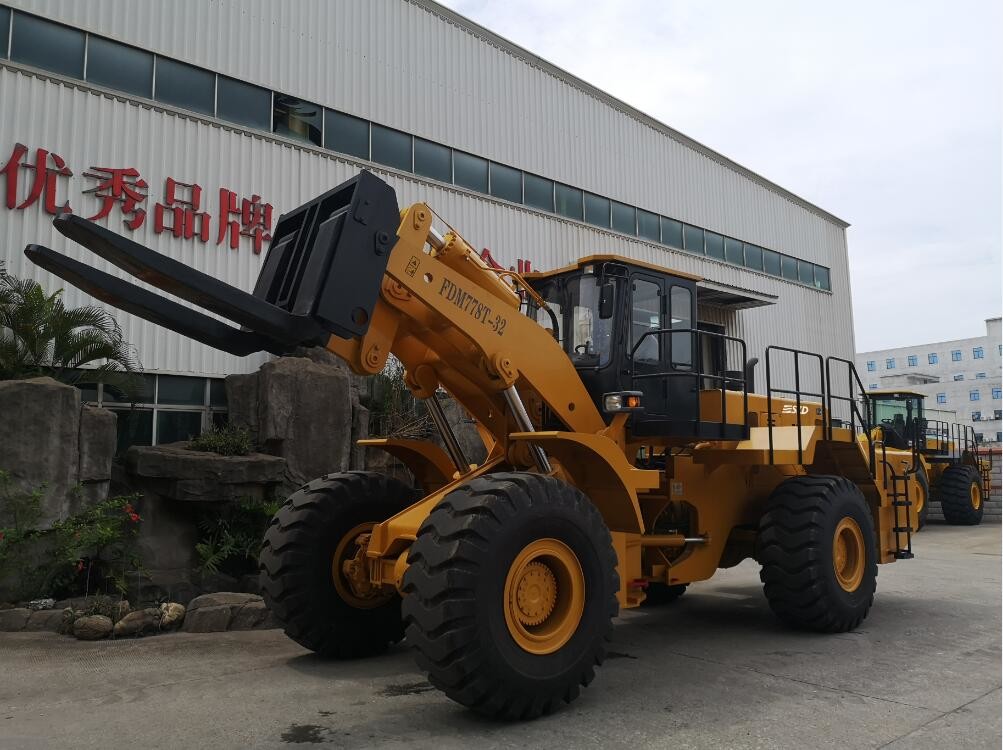

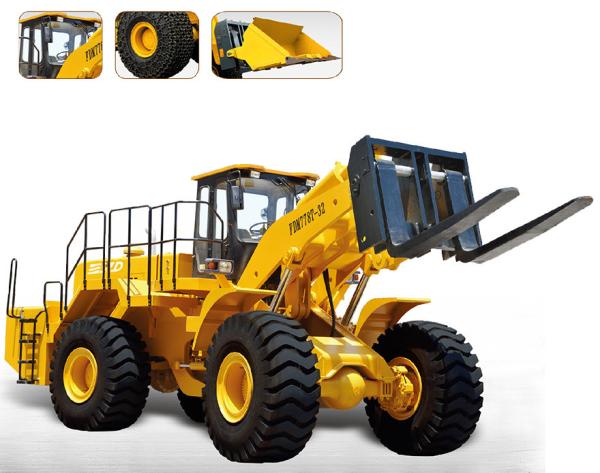

Rated Load 32000kgs Forklift Loader Lift 32 Tons Block In Stone Logstic Yard

FDM778T-32 fork loading truck

The loader with double rocker arm connecting rod can lift materials up to more than 32 tons.
Powerful turbocharged engine with 6-cylinder 4-stroke for excellent performance and high torque reserve is low-oil consumption.
Beautiful streamlined appearance .Pressurized cabin with optional air conditioning and heating system provides comfortable operation environment .
Four-wheel dual pipelines disc brake system ensures safe and reliable operation.
Double-turbo hydraulic torque converter facilitates the gear shifting for easier operation.
Various working equipment and shovel can meet the requirements of different customers.
Fork or bucket can be matched .

Optional equipment

32t Forklift Loader

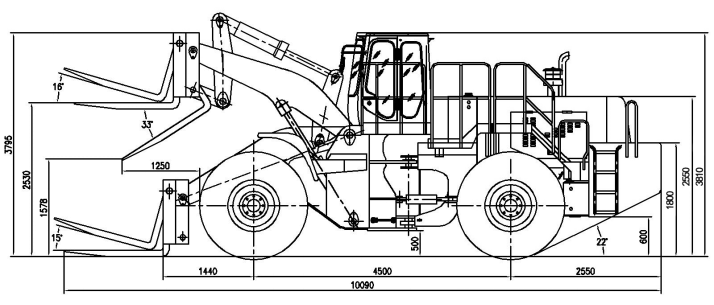

Item		Specification	Unit
Engine power		199	kw/h
Overall dimension(L×W×H)		10090×3120×3780	mm
Max. lifting height		2530	mm
Operating weight		34000	kg
Load center distance		800	mm
Maximum load		34000(≤200mm)	kg
Bucket capacity
Fork size	L×W×H	1600X300X130	mm
	Distance of fork	250-1330	mm
	Rated loading capacity	32000	kg
Turning angle		30	°
Unloading angle		33	°
Max. Grade Ability		≥21	°
Wheel base		4500±15	mm
Wheel Tread		2460	mm
Min. Ground clearance		490	mm
Fuel tank capacity		240	L
Hydraulic fuel tank capacity		350	L
Specification of tyre		4*26.5-25-44PR

32t Forklift Loader
