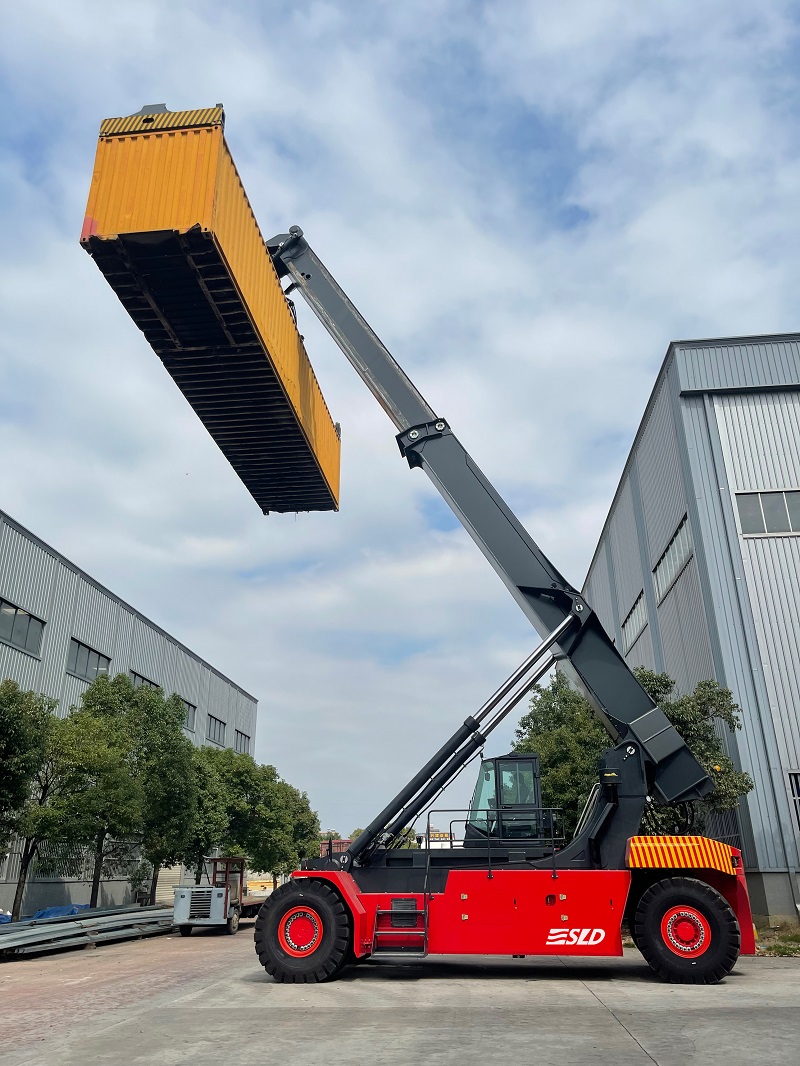

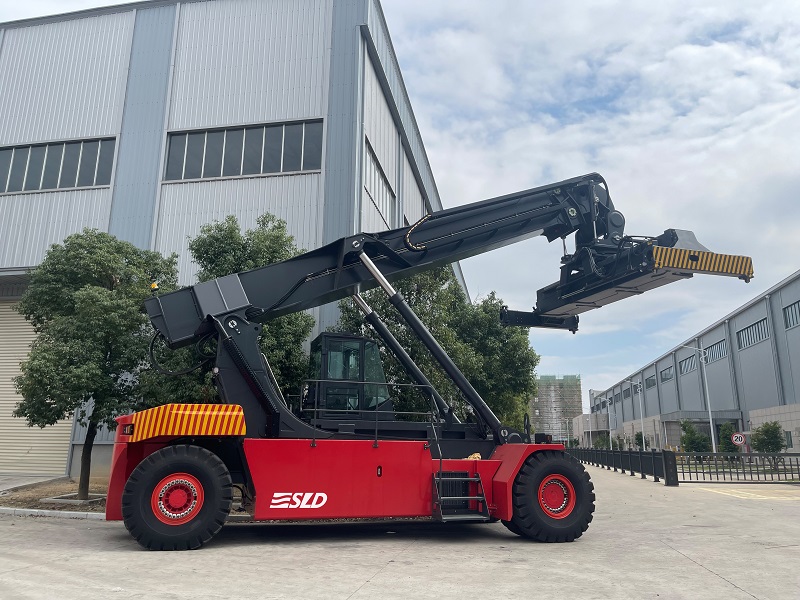

Rated Load 45000 Kgs Container Reach Stacker For Ports
Main features of our 45 tons container reach stacker:
1, The best price in Chinese brands of reach stackers 45 ton
Besides good quality container reach stacker, the highest cost performance in Chinese brands is also our important advantage.
Our brand SLD is not so famous as Konecrane, Kalmar, Hyster, Sany etc, It is our disadvantage. But we can provide best competitive price to our customers. You can buy high-quality products with the least money and improve the return on investment. Please contact us anytime if want to know attractive price.
2, Good quality product
Purchased parts, self-made parts and technology , these 3 key factors are very important for considering product quality. Our SLD 45 ton container reach stacker has absolute advantages on these key factors.
(1) Main key parts (Purchased parts)
Main parts are from import famous brands. For example, America CUMMINS brand CUMMINS QSM11 engine, German ZF brand ZF/5WG261 AUTO transmission, German Kessler brand D102PL341 driven axle and Kessler L102 steering axle,
world class Linde hydraulic system, America Parker brand CANBUS control system etc.
(2), Self-made structural parts
Our parent company (Hailu group) is focusing on design, manufacture and detection of large steel work over 30 years experience . It has became one long-term partner for Noell from 2002 till now, and also provide customized made structural parts for many famous companies , such as Linde forklift, Terex Noell, Husiman, IHISCE, NKM Noell and Mitsubishi heavy Industries. Now we are awarded by Linde forklift company as their excellent supplier. In addition, ourselves-made big telescopic boom are also sold to Liugong and XCMG for their reach stackers. By the way, our high quality structural members are widely bought and used by some customers for their Konecrane Kalmar reach stackers for repair and replacement.
Our high quality structural parts tested and approved by the market, belongs to leading position in steel structure manufacturing industry. Better choice.
(3), Technology of SLDR450 reach stacker 45 tons
Improve the performance many times base on the original Linde technology.
Because Linde container transport equipments( 45ton container reach stacker and empty container handler) was bought by KONECRANE in 2013, so we invited Senior technical engineers from Linde to joint our technical department. Through improved technology base on previous Linde technology, our reach stacker brings higher performance and better sense of experience for our customers.
-
| CHARACTERISTICS |
| Model | SLDR450 |
| Power unit | Diesel |
| Operation type | Driver seated |
| Load capacity (L1, L2, L3) | Q (kg) | 45000/31000/16000 |
| Load centre, first row (L1) | c (mm) | 1800 |
| Load centre, second row (L2) | C (mm) | 3860 |
| Load centre, third row (L3) | C (mm) | 6400 |
| Axle centre to spreader center (L1-1/2 high) | x (mm) | 2800 |
| Wheelbase | y (mm) | 6400 |
| DIMENSIONS |
| Boom lift angle, raise/lowered | α/β(/°) | 61/0 |
| Height boom lowered | h1 (mm) | 4945 |
| Lift height (L1, L2, L3) | h3 (mm) | 15900/14100/11350 |
| Height, boom extended | h4 (mm) | 19000 |
| Height of cabin | h6 (mm) | 3900 |
| Height, operator's seat | h7 (mm) | 2840 |
| Towing coupling height | h10 (mm) | 600 |
| Twist lock height lowered | h13 (mm) | 1495 |
| Overall length with spreader | l1 (mm) | 11618 |
| Overall length | l2 (mm) | 8410 |
| Overall width | b1/b2 (mm) | 4180/3400 |
| Width of spreader 20'/40' | b3 (mm) | 6050/12150 |
| Ground clearance min. | m1 (mm) | 345 |
| Ground clearance, centre of wheelbase | m2 (mm) | 350 |
| Stacking aisle 20' containers | Ast (mm) | 10225 |
| Stacking aisle 40' containersTurning radius | Ast (mm) | 13050 |
| Min. pivoting point distance | Wa (mm) | 8605 |
| Min. pivoting point distance | b13 (mm) | 3400 |
| Wheelspan, front wheels | b10 (mm) | 3030 |
| Wheelspan, rear wheel | b11 (mm) | 2786 |
| WEIGHT |
| Weight (unladen/laden) | kg | 71400/116400 |
| Load on drive axle (unladen/laden) | kg | 36400/101900 |
| Load on steering axle (unladen/laden) | kg | 35000/14500 |
| PERFORMANCE |
| Travelling speed (unladen/laden) | Km/h | 25/21 |
| Gradeability (unladen/laden) | % | 30/28.8 |
| Tractive force (unladen) | Kn | 408 |
| Lifting speed (unladen/laden) | m/s | 0.39/0.28 |
| Lowering speed (unladen/laden) | m/s | 0.39/0.39 |
| CABIN |
| Movable closed cabin |
| Equipped with A/C, cooling/heating functions |
| Noise level at driver's seat | dBA | 74 |
| ENGINE |
| Brand | | CUMMINS |
| Type | | QSM11 |
| Cylinder no./displacement | | 6/10820 cm3 |
| Rated power @ rated speed | | 250kw @ 2100rpm |
| Max. torque | | 1674Nm@ 1500rpm |
| Rated current of alternator | | 150A |
| Battery | | 24V |
| TRANSMISSION |
| Brand | | ZF/5WG261 AUTO |
| Type | | Auto-shift/interlock |
| Clutch type | | Torque converter |
| Gear no. | | 5F/3R |
| TYRES |
| Drive wheels | | 18.00-25 40PR |
| Steering wheels | | 18.00-25 40PR |
| Type | | Pneumatic |
| Pressure | | 10 bar |
| Quantity, front/rear | | 4/2 |
| TANKS CAPACITY |
| Hydraulic oil tank | L | 800 |
| Fuel tank | L | 500 |
| DRIVE AXLE |
| Brand | | Kessler/Germany |
| Model | | D102PL341 |
| STEERING AXLE |
| Brand | | Kessler/Germany |
| Model | | L102 |
| Steering | | Double action cylinder |
| BRAKE SYSTEM |
| Service brake | | Hydraulic wet-disc |
| Parking brake | | Electric released disc brake, enabled when power off |
| HYDRAULIC SYSTEM |
| Twin piston pump |
| Max. pressure: 310 bar |
| Load sensing system |
| Hydraulic cooler with electric motor |
| Separate brake oil tank |
| BOOM |
| 2x Dual action lift cylinders |
| 1x Dual action extension cylinder |
| SPREADER |
| Handling ISO 20'-40' containers |
| 2x damping cylinder | 2x gearbox & brake system |
| Brand | SP45 |
| Rotate degrees | -105°/+195° |
| Sideshift | -800/+800mm |
| TRUCK SAFETIES |
| Error display system |
| Counter system for containers |
| Weighing system (low precision) |
| Electric anti-overload system |
| Full can-bus control system |
| Direction gearshift interlock |
| Parking brake enabled when power off |
| Seat switch |
| SPREADER SAFETIES |
| Locking/unlocking only after correct landing |
| Lifting/lowering only when the 4 twistlocks on same position |
| Anticollision rotation limit switch |
