52 Tons Forklift Loader For Lifting Big Stone Block

Brand Name : SLD

Model Number : FDM798T-50

Certification : ISO, CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T, L/C

Supply Ability : 100 units per month

Delivery Time : 25 working days

Packaging Details : 40FR container

Rated load : 52000kgs

Load center : 800mm

Operating weight : 52000kgs

Max. lifting height : 3000mm

Overall dimension（L×W×H） : 10450×3400×4200 mm

Engine : Weichai

Wheelbase : 4750mm

Engine power : 247kw

Transmission : ZL80

Fork size : 1600X320X140 mm

Tire size : 4×29.5-29-46PR

Contact Now

52 tons Forklift Loader for lifting big stone block

Main features:

CUMMINS powerful turbocharged engine with 6-cylinder 4-stroke for excellent performance and high torque reserve is low-oil consumption.
Chinese famous Qingzhou Beilian hydraulic transmission ZL80 special use for forklift loader, Caterpillar technology. Double-turbo hydraulic torque converter facilitates the gear shifting for easier operation.
Enlarged and strengthened professional driven axle (supporting plant of XCMG group) special for forklift loader, also adopt enlarged bearing, gear, hub and supporting shaft . The transmission system has reliable quality and increased support weight.
Increase the steering cylinder to ensure flexible steering under heavy load. The system pressure of the whole machine is stronger and the lifting force is sufficient.
Independent transmission oil heat dissipation to improve system stability; The operation is light and comfortable to improve the stability of the system.
Luxury mold molding new professional cab, strong rigidity, high strength, outstanding sound insulation and shockproof effect. Equipped with professional cooling and heating air conditioners. Wiper spray setting, the whole machine operation is more modern and humanized.
Luxurious appearance and harmonious proportion structure make it beautiful, generous and compact. New arc appearance design, beautiful and generous appearance.
In addition to special design of structures, use thickened steel plate, the thickness of boom is up to 60mm, the thickness of hinge plate is up to 60mm, and the hinge pin and hinge bearing are increased to improve the bearing capacity in an all-round way. The whole vehicle is stronger and durable.
The two corners of rear counterweight are designed as large corners ( Is not easy to hit stones in stone yard). The rear counterbalance weight reaches 13 tons.

Item	Specifications		Unit	Parameter	Remarks
	Full length (fork square ground)		mm	10450
	Full width		mm	3400
	Full height		mm	4200
	Load center		mm	800
	Service weight		kg	50000
	Rated load		Kg	50000
	Maximum lifting height		mm	3000
	Maximum lifting height of fork carriage		mm	4340
	Maximum front overhang distance		mm	1730
	Maximum liftting speed No-load/full-load		mm/s	250 / 170
	Maximum descent rate No-load/full-load		mm/s	160 / 180
	Maximum tilt angle of fork forward/backward		( °)	23 / 15
	Fork size (LWT)		mm	1600X320X140
	Fork adjustment range		mm	3000
	Steering angle (L/R)		( °)	30 / 30
	Turning diameter		mm	20000
	Minimum ground clearance		mm	520
	Clambing gradeability (full load)		( °)	18
	Maximum traction force		kN	270
	Wheelbase		mm	4750
	Wheel tread (front / rear)		mm	2590 / 2590
	Front overhang distance (minimum)		mm	1480
	Rear overhang distance		mm	2590
	Departure angle		( °)	21
	Driving speed	Forward I / II	Km/h	12.0 / 22.0
	Driving speed	Reverse I / II	Km/h	14.0 / 20.0
	Engine			CUMMINS 6LTAA8.9-360	247KW
	Tyre			4×29.5-29-46PR	Zhongwei
	Transmission &torque converter			Fixed shaft power shift	Qingzhou Beilian

52 Tons Forklift Loader For Lifting Big Stone Block

Product Tags:

52Tons Forklift Loader

Weichai Engine Forklift Loader

Big Stone Block Lifting Forklift 247kw

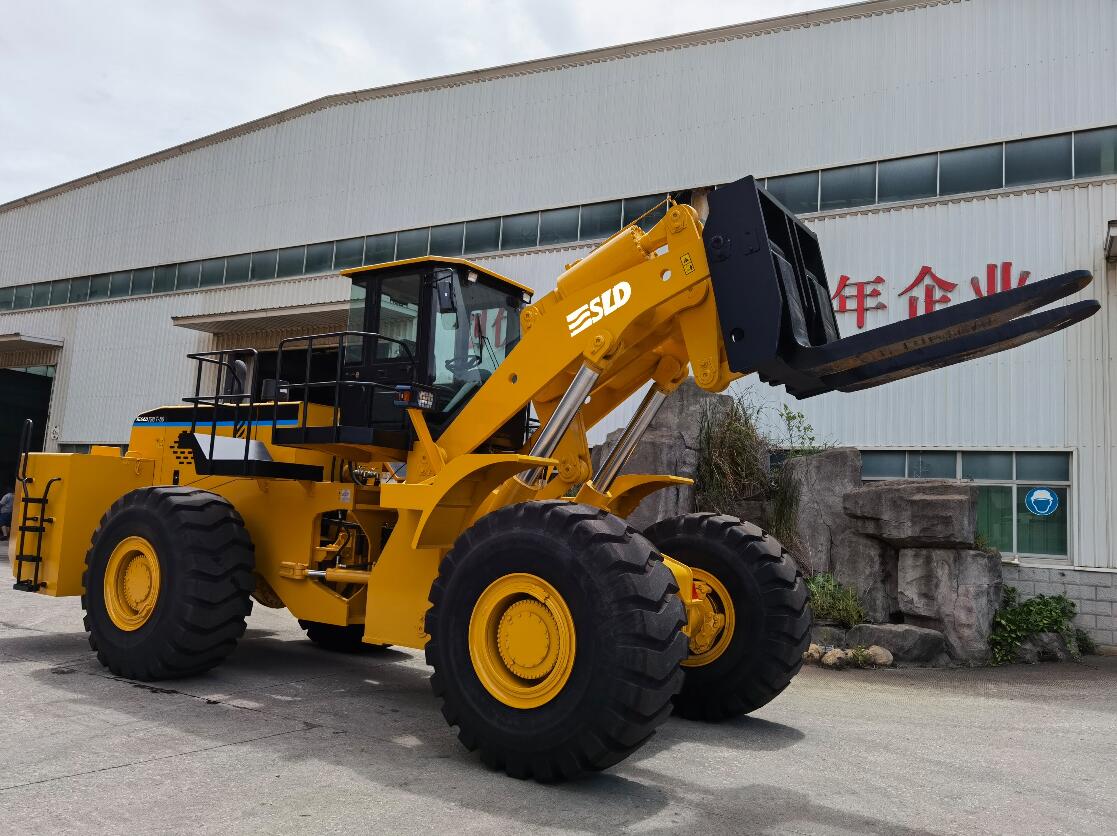

52 Tons Forklift Loader For Lifting Big Stone Block Images
